Large Display Boards
From the original 151-JUMBO to today's AAQMS-grade matrix panels, Avontec LDBs deliver readable, reliable data across the shop floor and beyond.

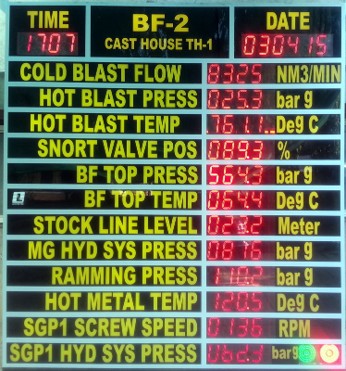

BF-2 cast house multi-parameter LED display board
Display Boards for Every Application
Four signature families, all built in Pune, all field-proven across India's heaviest industries.
151-JUMBO Series
Flagship 7-segment large display boards. 2", 4", 6", 8", 12" character heights. Universal analog & digital input.
LED Matrix Alphanumeric
Scrolling and static text/data displays. Bi-color, RGB and AAQMS-compatible variants for outdoor & indoor use.
Iron-Making & SMS Caster
Heavy-duty cast house and caster floor displays. Temperature, weight and torpedo-level data with redundant inputs.
Power Plant MIS Panels
Multi-line unit generation displays for control rooms and outdoor switchyards. Fail-safe redundancy.
Engineered to the Last Detail
| Parameter | Specification |
|---|---|
| Character Height | 2" / 4" / 6" / 8" / 12" (custom up to 24") |
| Digit Count | 4 / 6 / 8 digits, multi-row configurable |
| LED Type | Ultra-bright red, amber, green, white or RGB |
| Viewing Distance | Up to 100 m (12" digit, daylight readable) |
| Inputs | RTD, Thermocouple, 4–20 mA, 0–10 V, RS-485 Modbus RTU, BCD, Ethernet/IP |
| Outputs | RS-485, RS-232, optional 4–20 mA retransmit, relay alarms |
| Enclosure | Powder-coated MS or SS-304 / SS-316. IP54 to IP65 |
| Power Supply | 85–265 V AC universal, optional 24 V DC, hot-swap PSU available |
| Operating Temp | −10 °C to +60 °C standard, extended on request |
| Compliance | CE-marked components, ISO 9001:2015 manufacturing |
Proven Across India's Toughest Sites

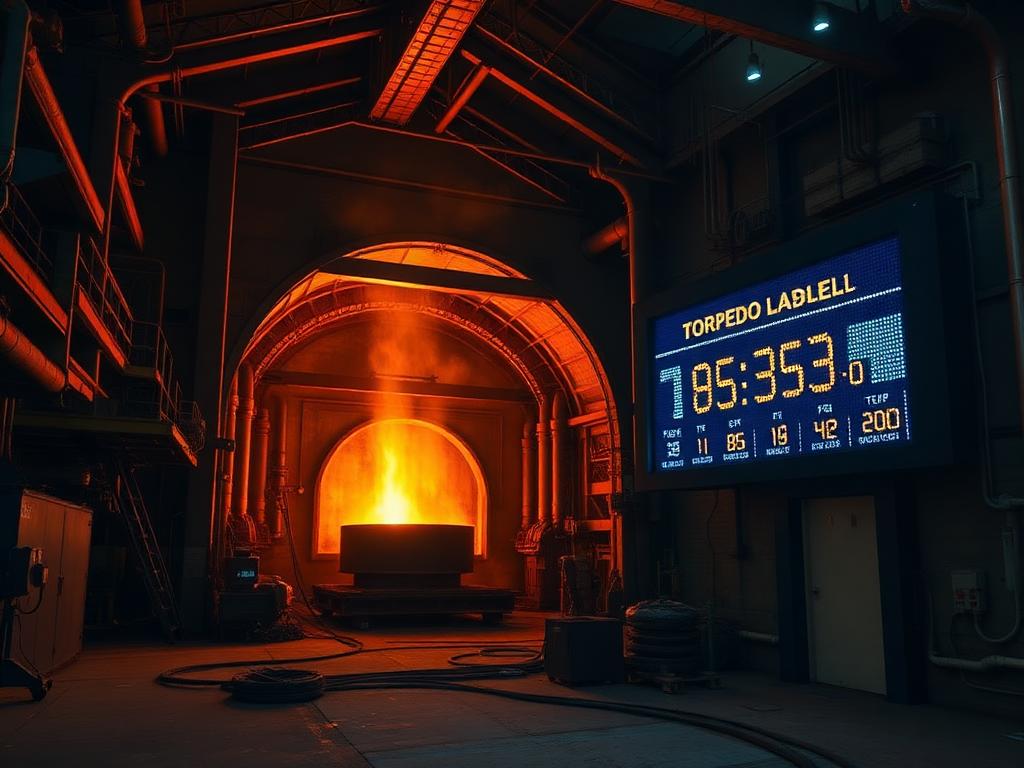

Cast house torpedo-level display installation
Built for the Cast House
Decades of installations at JSW Dolvi, SAIL Bhilai, Tata Steel and beyond. Withstanding heat, vibration and electromagnetic noise our steel-plant displays read clearly across the shop floor.
- ▸Torpedo ladle temperature & level
- ▸SMS caster speed and sequence
- ▸Blast furnace MIS panels
- ▸Hot strip mill production counters
Ready to spec your display?
Our engineers will help you pick the right digit height, input type and enclosure for your environment.
